Wire Cut EDM—short for Wire Electrical Discharge Machining—is a precision machining technology that uses electrical sparks to cut metal. Ideal for intricate shapes and hard materials, it’s a go-to solution in aerospace, medical, tooling, and mold-making industries.
In this guide, we’ll explain how Wire Cut EDM works, explore its benefits, and show why it’s crucial for high-precision manufacturing.
What is Wire Cut EDM?
Wire Cut EDM is a type of Electrical Discharge Machining where a thin metal wire acts as an electrode to cut conductive materials. The wire is continuously fed through the machine and doesn’t touch the material—tiny electrical sparks between the wire and workpiece erode the material instead.
Key Characteristics:
- Uses brass or copper-coated wire (0.1–0.3 mm diameter)
- Cuts without mechanical force
- Ideal for hard metals and delicate geometries
- Operates under deionized water to flush debris
How Does Wire Cut EDM Work?
- Design Input: A CAD model is imported into the machine’s software.
- Setup: The workpiece is fixed, and the tank is filled with dielectric fluid.

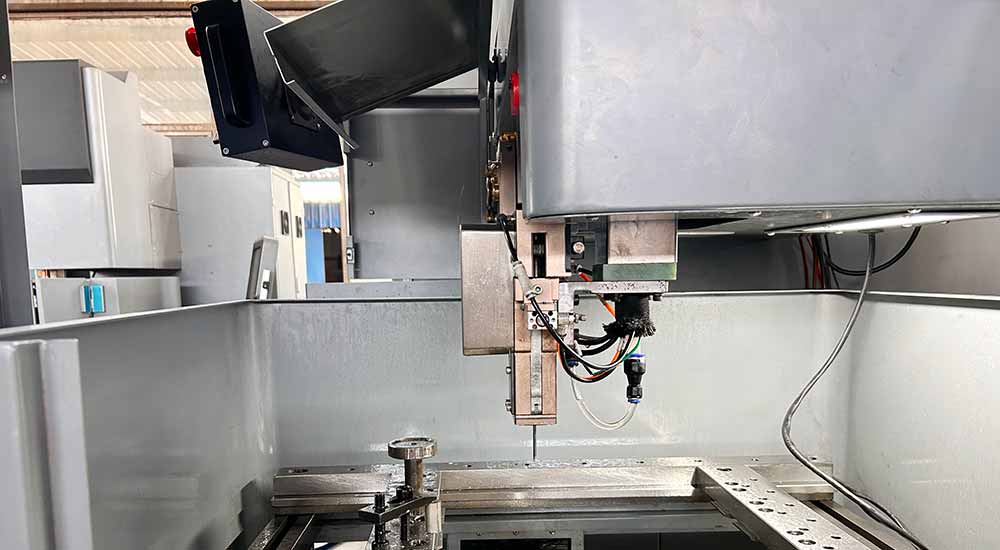

- Wire Feed: The machine feeds the wire electrode through upper and lower guides.
- Spark Erosion: Sparks jump the small gap between the wire and the workpiece, vaporizing material.
- Flushing: Dielectric fluid cools and cleans the cutting zone.
Top Benefits of Wire Cut EDM
- High Precision: Achieve tolerances as tight as ±1 μm.
- Complex Shapes: Produce internal corners and fine details with ease.
- No Tool Pressure: Eliminates stress on delicate or thin parts.
- Works with Hardened Materials: Easily cuts tungsten, titanium, and tool steel.

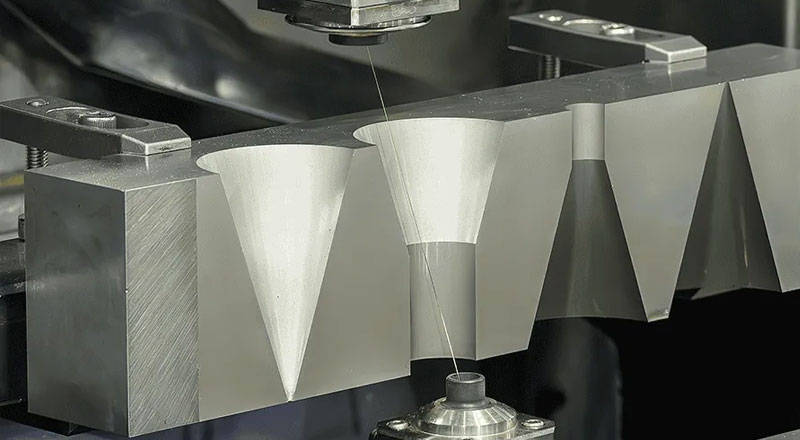

- Excellent Surface Finish: Reduces or removes the need for secondary processing.
Common Applications
Wire Cut EDM is indispensable in high-tech industries:
- Aerospace: Turbine components, brackets, and housings
- Medical: Surgical instruments and orthopedic implants
- Tooling: Precision dies, punches, and extrusion tools
- Electronics: Connector dies, micro-parts, lead frames
- Automotive: Injection molds, engine components, gear dies
Wire Cut EDM vs Traditional Machining
| Aspect | Wire Cut EDM | CNC Milling | Laser Cutting |
|---|---|---|---|
| Material Type | Conductive materials only | Most materials | Wide range |
| Precision | Extremely high | Moderate to high | Moderate |
| Tool Wear | No physical wear | Yes | No physical contact |
| Heat-Affected Zone | Minimal | None | Noticeable |
| Shape Complexity | Excellent for intricate shapes | Good for 3D contours | Best for 2D profiles |
How to Choose a Wire Cut EDM Machine
When selecting a machine, consider:
- Accuracy and repeatability
- Worktable size and axis range
- Wire diameter options
- Auto wire threading (AWT) for uninterrupted operation
- Software compatibility with CAM systems
- After-sales support and service
Maintenance Tips
To ensure optimal machine performance:
- Monitor wire tension and replace guides regularly
- Change dielectric fluid and filters as recommended
- Clean tank and sediment traps
- Check machine calibration and software updates
Conclusion
Wire Cut EDM is the ultimate solution for producing high-precision, complex metal parts without physical contact. If you’re in aerospace, medical, tooling, or high-end manufacturing, investing in a quality Wire Cut EDM machine can elevate your production capabilities.
Want to explore advanced Wire EDM solutions? Contact our team for recommendations tailored to your production needs.
