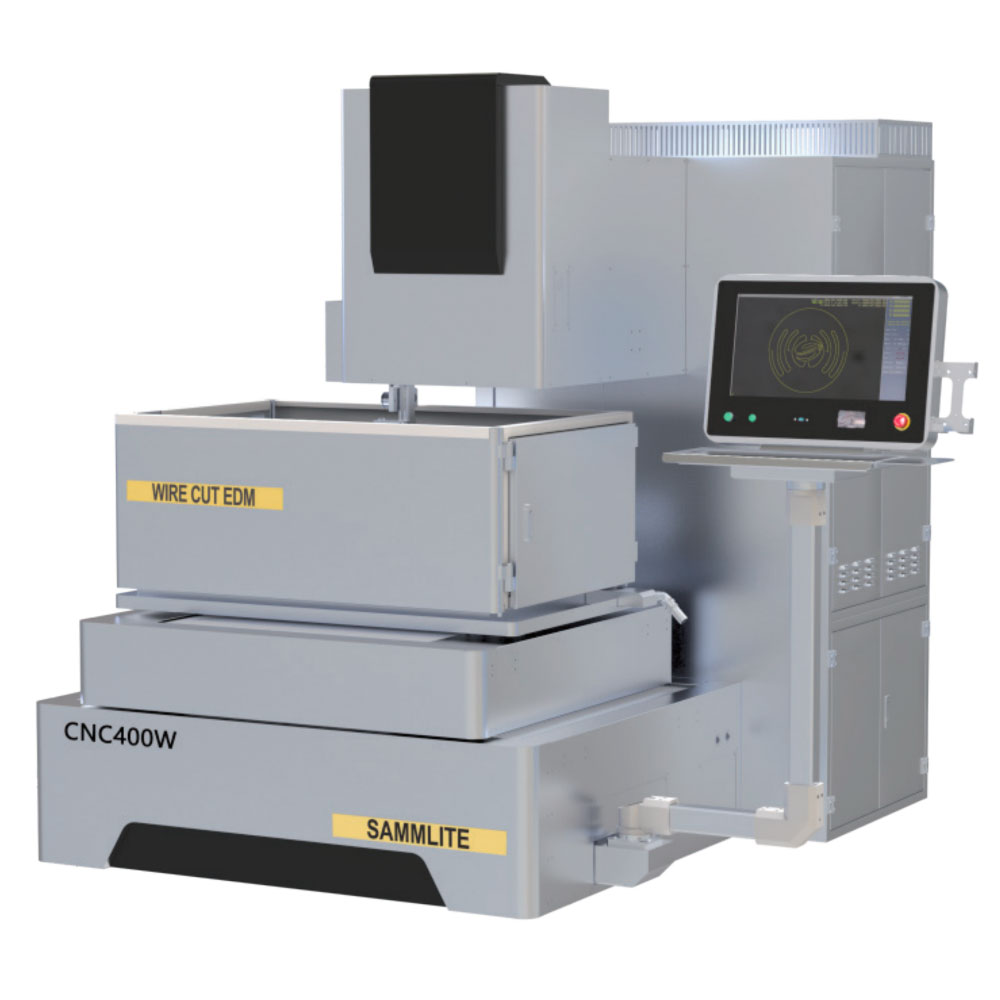

Wire Cut EDM CNC400W AWT/CNC400W AWT MAX

Automatically Wire Threading:45sec, Time Saving, Low Labour Cost, Full Closed Cover CE Design

KEY FEATURES:

  • Absolute servo motoris used to ensure the accuray control for AWT system.
  • The control system is the combination of PLC& Autocut system to ensure the flexibility of AWT system.
  • Email: info@sammliteedm.com
  • Mobile Phone: (86) 189-1244-6263
  • Location: Liuqiao Industrial Zone, Nantong City, Jiangsu, China

Description

Technical Specification

Our automatic wire threading wire cutting machine features intelligent auto-threading technology that significantly reduces labor costs and improves operational efficiency. Built with premium brand-name components, this reliable system ensures consistent performance and minimal downtime. The automated wire threading eliminates manual intervention, allowing for continuous operation with superior cutting precision.

Machine CNC400W AWT MAX CNC400W AWT
Table Size(mm) 900×600 800×500
Table Travel (mm) 480×380 480×400
Max Thickness(mm) 190 190
U/V Axis Travel(mm) 70×70 35×35
Taper(degree) ±3° ±3°
Max Load (kg) 500 500
Wire Diameters(mm) 0.18 0.18
Accuracy(mm) ±0.005 ±0.005
Dimension(mm) 1800×2200×2200 1800×2200×2200
Weight(Kg) 1900 1900

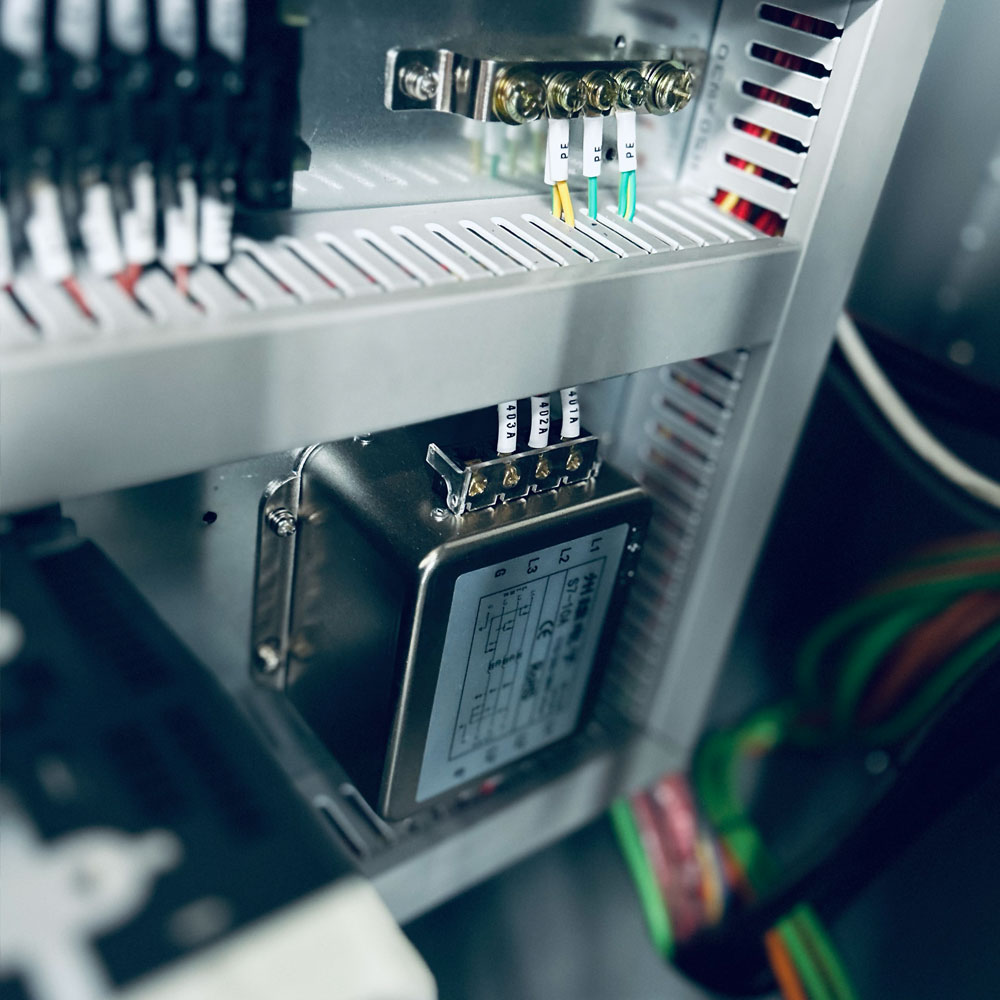

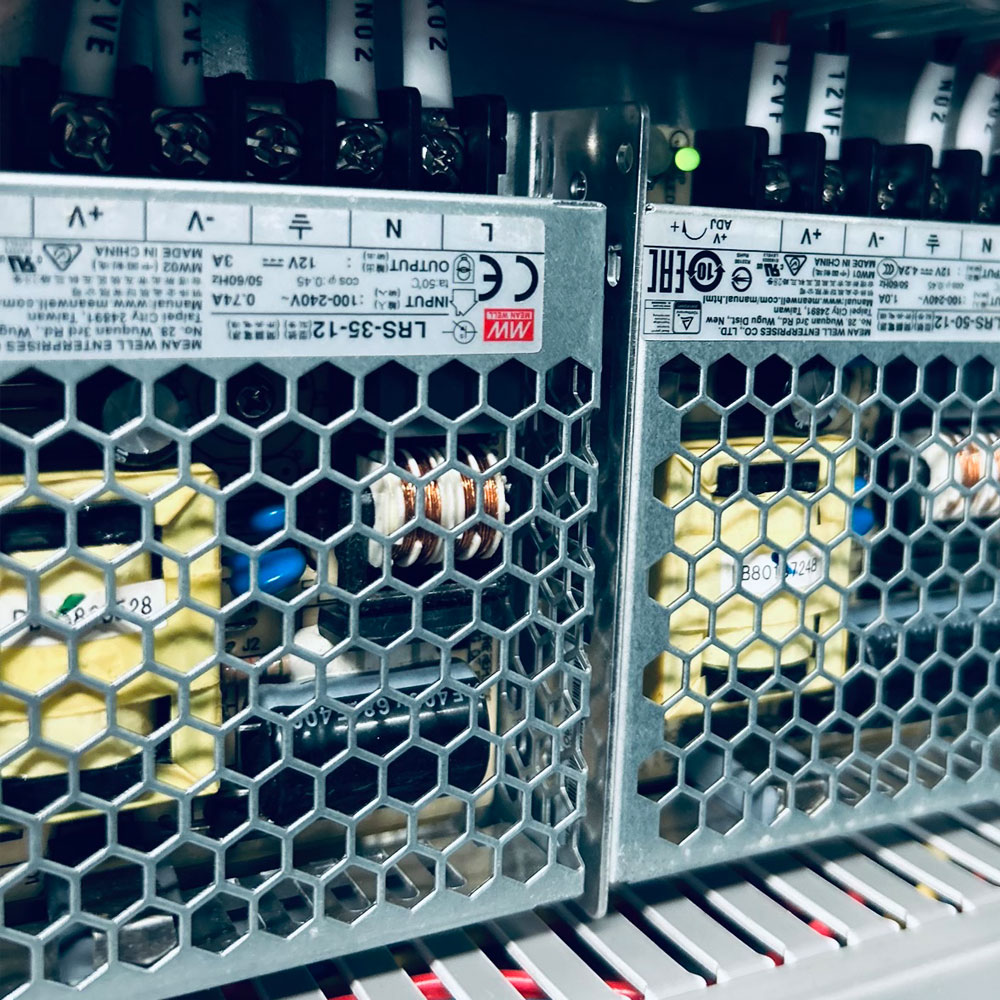

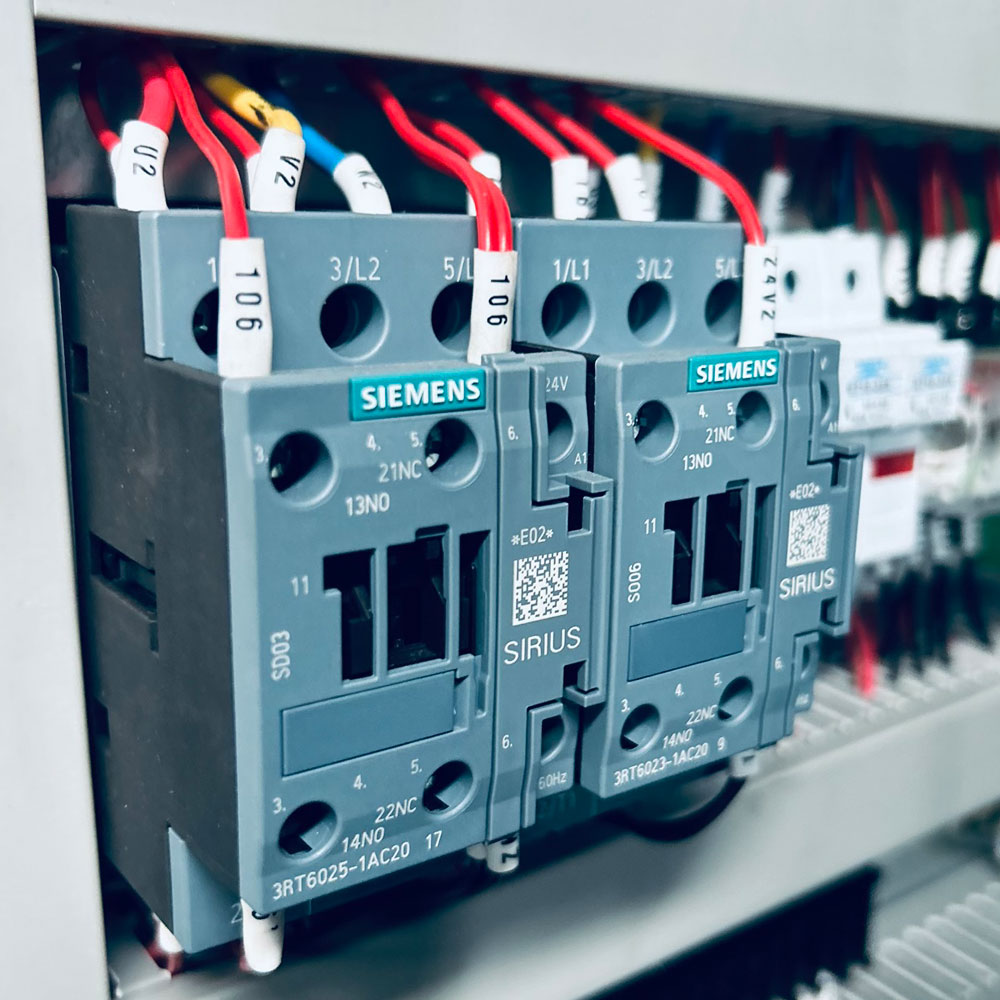

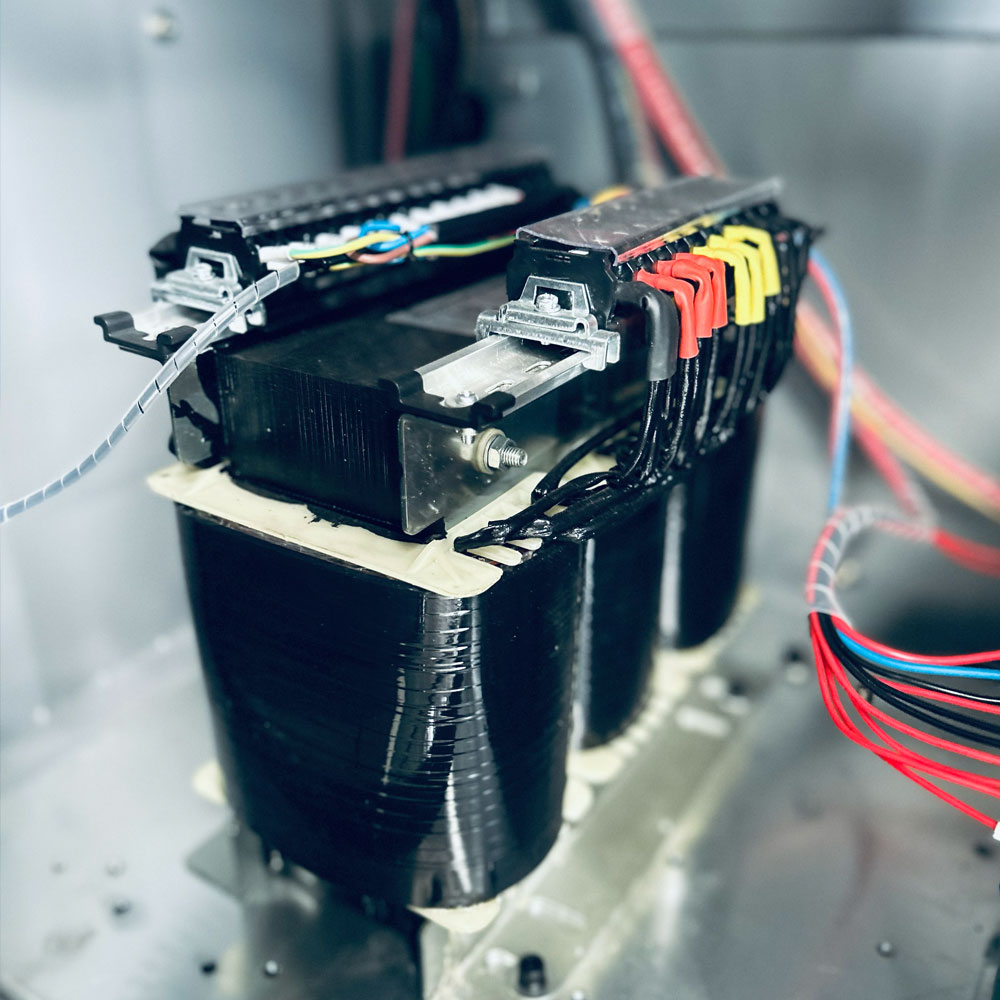

Generator
Roughness Ra<1.0 Ra<1.0
Efficiency(mm²/min) 100-200 100-200
Power 4KWA50/60HZ 220V/380V 4KWA50/60HZ 220V/380V
U/V/Z Axis Motor Subdivision Motor Step Motor

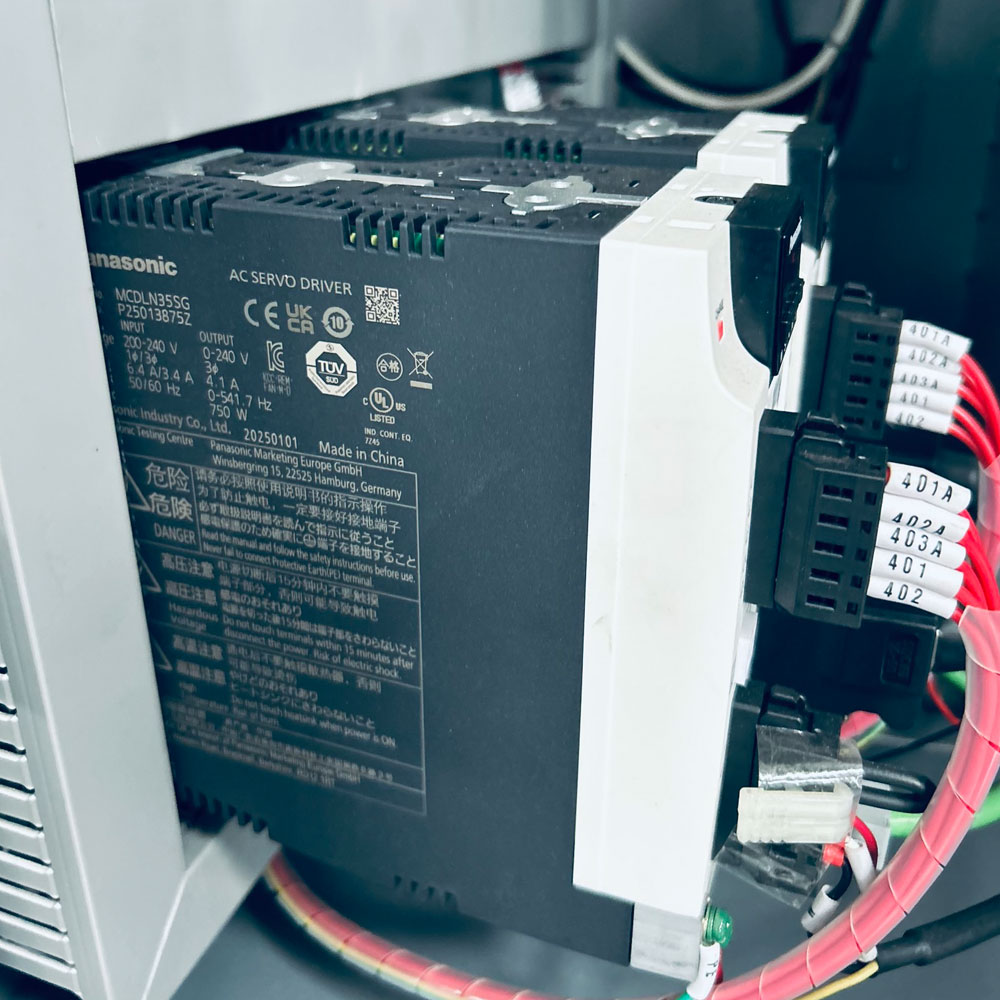

X/Y Motor Panasonic Servo Motor Panasonic Servo Motor
Wire Motor Servo Motor Servo Motor

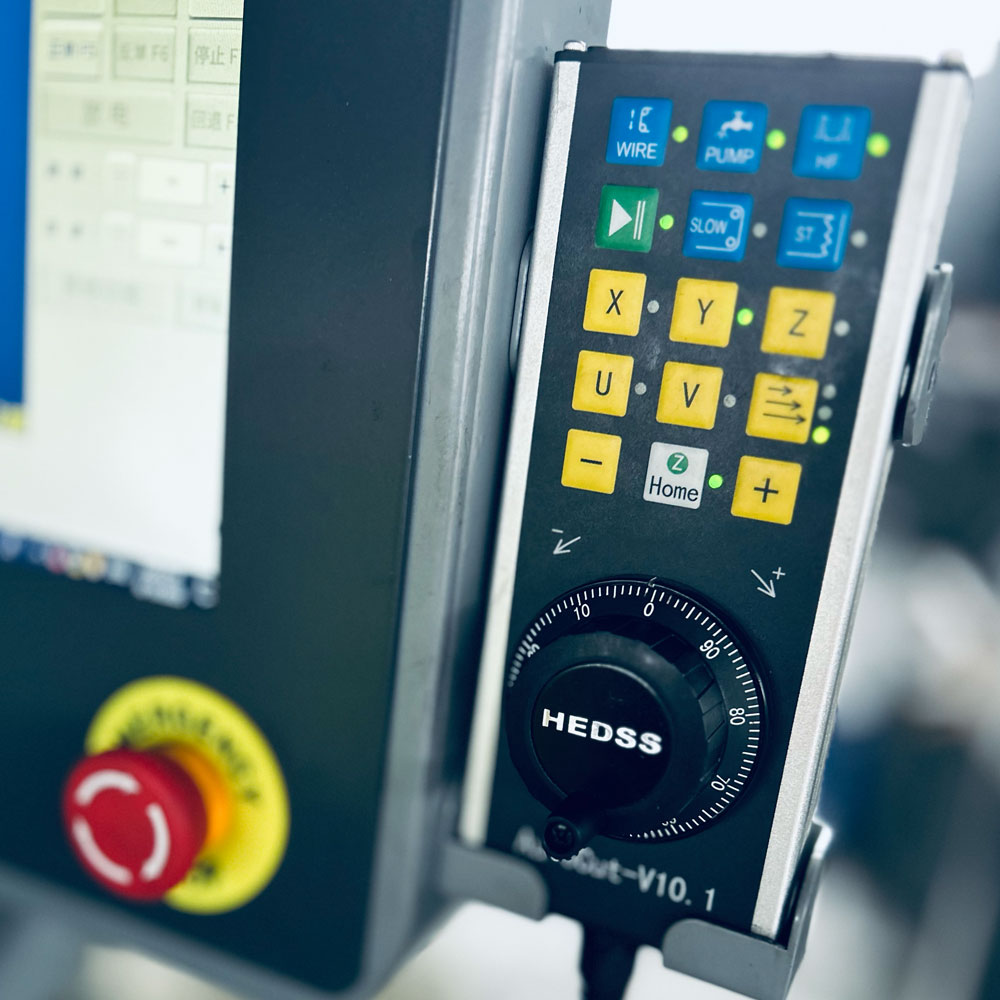

System
Software AutocutV10.1&NCCAD AutocutV10.1&NCCAD
Windows Win10 Win10
Hardware Industrial PC,32G SSD Industrial PC,32G SSD
NC Axis 5 Axis NC Control 5 Axis NC Control
Language ENG/CHN ENG/CHN

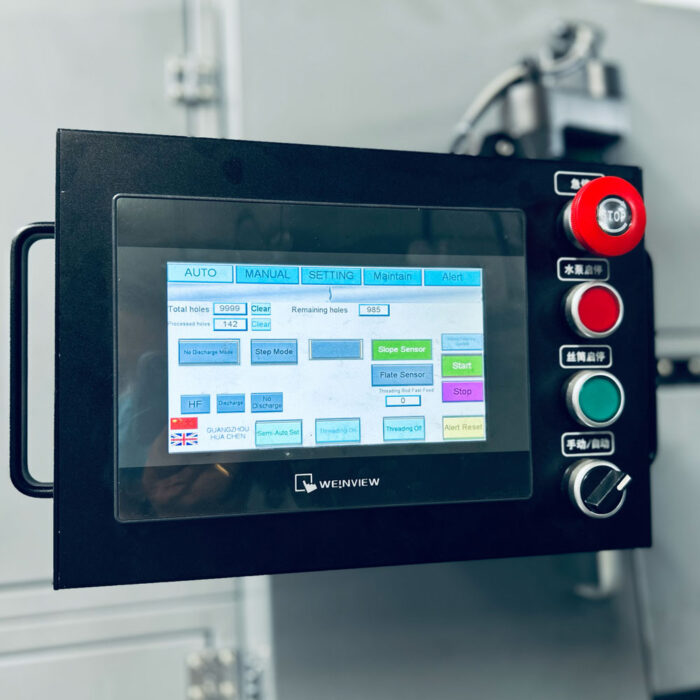

AWT Option

Hole Diameter <0.5-2.0mm or>4.0mm Flate/Slope Sensor Function √
Max Height of Threading Hole:0.5-2.0mm/150mm Wastes Drop Function √
Max Height of Threading Hole:4.0/less than 80mm Tension Control √
Max Height of Wastes Drop <50mm Tube Air Clean Function √
Threading Time 30-45sec Liquid Clean Function √  (WD-40)
Max Workpiece Height 190mm Wire Broken Sensor √
Air Pressure >0.4MPA Semi-Auto Threading √
Power Consumption of AWT  2KWA Software AutocutV10.1 AWT
Drum Control 1.5KWA Servo Motor Max Threading Hole each time 150 Times
Wire-Cut-EDM-UV-Axis

Scientific Design of Z/U/V Structure

The Z/U/V axises use ball screw and linear guide to achieve high precision. It suits taper cutting prefectly and allows users to have better operating experience.

wire-Cut-EDM-Layout

Space Saving Design Only 3m²

X-axis and Y-axis are table movement structure. 5 axis CNC Wire Cut EDM machine adopts HT250 castings, which has a compact and beautiful structure. Occupied area 3m².

Wire-Cut-EDM-Z-axis-

Z Axis NC Control

Z Axis has position memory function, easeir for taper operating.

UV-Axis-Move

X/Y/U/V NC Control

X/Y/U/V feedback to the wire EDM system.

Applications

Wire-Cut-Case1
Material DC53
Thickness 30mm
Cuts 3 cuts
Hours 6 hours
Ra 0.95 um
Wire-Cut-Case2
Material CR12
Thickness 210mm
Cuts 3 cuts
Hours 2 hours
Ra 1.5 um
Wire-Cut-Case3
Material H13
Thickness 42mm
Cuts 2 cuts
Hours 3 hours
Accuracy 0.01mm
Wire-Cut-Case4
Material CR12
Thickness 40mm
Cuts 3 cuts
Hours 40 min
Accuracy 0.008mm

Videos

Accuracy Measure

Wire Cutting Demo

Autocad+Autocut Software
