Die Sinking EDM CNC300 / CNC350

High Speed & Accuracy, Mirror Surface, Sodick Based System

KEY FEATURES:

  • Adaptive sparking control
  • High speed jump & jump control
  • A variety of positioning modes
  • Auto fire-extinguish & Anti carbon system
  • CNC Sodick supported system & Touching screen
  • Work piece detection & Spark gap detection
  • X/Y/Z Panasonic AC motors
  • Marble material work table
  • G-Code processing & Auto expert database
  • Mirror finishing & Tungsten circuits
  • 1um driven unit
  • Email: info@sammliteedm.com
  • Mobile Phone: (86) 189-1244-6263
  • Location: Liuqiao Industrial Zone, Nantong City, Jiangsu, China

Description

Technical Specification

Specification CNC300 CNC350
Table Size
600×400 mm
600×400 mm
X/Y Axis Travel
300×200 mm
350×250 mm
Z Axis Travel
250 mm
250 mm
Max Workpiece Weight
400 KG
400 KG
Driven Motor
Panasonic / Mitsubishi Servo Motor
Electrode Weight
25KG
50KG
Surface Roughness
Ra<0.1um
Ra<0.1um
Distance From Worktable to Electrode Plate
540mm
540mm
Electrode Wear Ratio
<0.05%
<0.05%
Position Accuracy
0.008mm
0.008mm
Machine Weight
2000 KG
2200 KG

Applications

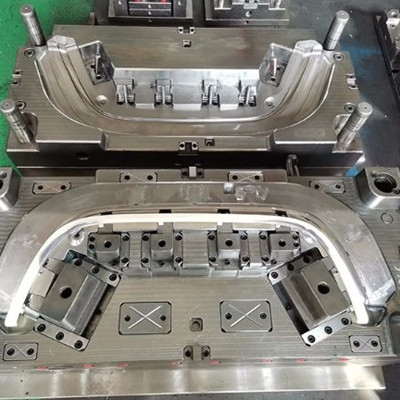

car-mold-by-column-type-edm
Case Car Bumper
Material P20
Electrode Copper
Model CNC850

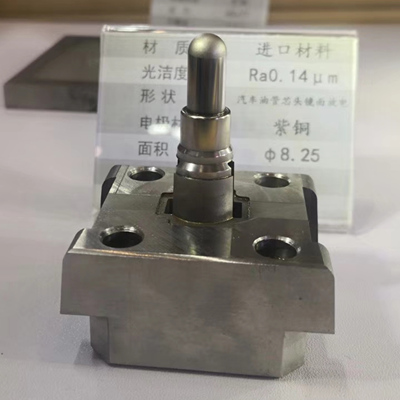

Die-Sinker-Case4
Material  S136
Electrode Copper
Ra 0.14um
Area 8.25mm²

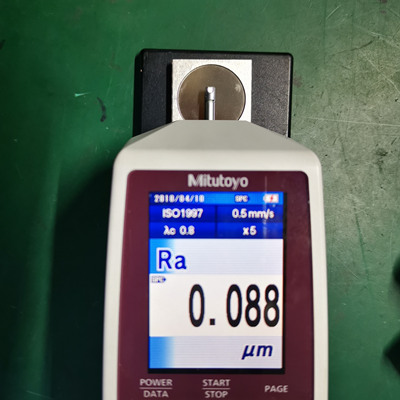

Die-Sinker-Case2
Material  S136
Electrode Copper
Ra 0.08um
Area 25×25mm

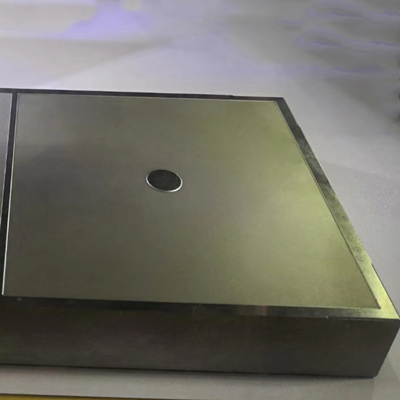

Die-Sinker-Case3
Material  S136
Electrode Graphite
Ra 0.8um
Model CNC400

Videos

EDM Sparking Demo

Column Type EDM With Dual Spindles
